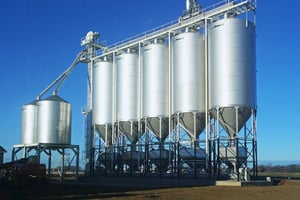

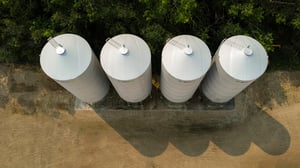

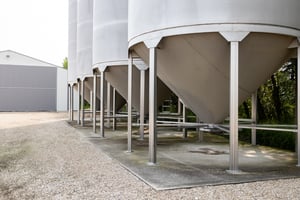

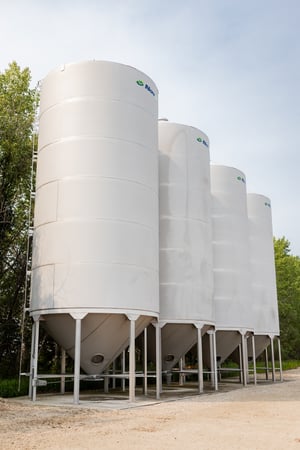

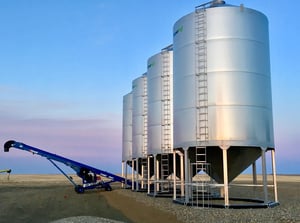

Stainless Hopper Bottom Bins

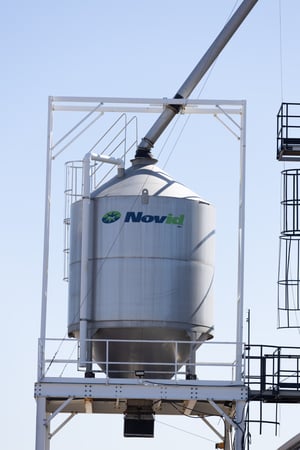

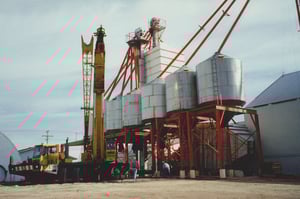

Our dry fertilizer hopper bottom storage bins and scale hoppers & shelters are professionally designed & engineered for the safe storage of dry fertilizers.
This is a new generation of hopper bottom bins.
Hopper bottom bin sizes & capacities.
Our standard hopper bottom bins range in sizes from 12–16' wide and 25–48' tall.
Click below to view our standard model lineup or get a quote for custom bins.
|
MODEL
|
MT
|
LT
|
HEIGHT
|
AUGER
|
| 1215/45 | 59 | 65 | 25' 3" | 53' |
| 1215/55 | 62 | 68 | 27' 6" | 53' |
MT = metric tonne
LT = long ton
|
MODEL
|
MT
|
LT
|
HEIGHT
|
AUGER
|
| 1415/40 | 81 | 89 | 26' 10" | 53' |
| 1415/45 | 83 | 91 | 27' 10" | 53' |
| 1415/55 | 87 | 95 | 30' 6" | 63' |
| 1420/40 | 103 | 113 | 32' 10" | 63' |
| 1420/45 | 105 | 115 | 31' 10" | 63' |
| 1420/55 | 109 | 120 | 35' 6" | 63' |
| 1425/40 | 125 | 137 | 36' 10" | 73' |
| 1425/45 | 127 | 139 | 37' 10" | 73' |
| 1425/55 | 131 | 144 | 40' 6" | 73' |
| 1430/40 | 147 | 161 | 41' 10" | 73' |
| 1430/45 | 149 | 163 | 42' 10" | 73' |
| 1430/55 | 153 | 168 | 45' 6" | 83' |
MT = metric tonne
LT = long ton
|
MODEL
|
MT
|
LT
|
HEIGHT
|
AUGER
|
| 1615/40 | 108 | 119 | 28' 3" | 53' |
| 1615/45 | 111 | 122 | 29' 5" | 53' |
| 1615/55 | 117 | 129 | 32' 7" | 63' |
| 1620/40 | 137 | 151 | 33' 3" | 63' |
| 1620/45 | 140 | 153 | 34' 5" | 73' |
| 1620/55 | 146 | 160 | 37' 7" | 73' |
| 1625/40 | 166 | 182 | 38' 3" | 73' |
| 1625/45 | 168 | 185 | 39' 5" | 73' |
| 1625/55 | 175 | 192 | 42' 7" | 73' |
| 1630/40 | 194 | 214 | 43' 3" | 73' |
| 1630/45 | 197 | 217 | 44' 5" | 83' |
| 1630/55 | 203 | 224 | 47' 7" | 83' |
MT = metric tonne
LT = long ton
|
MODEL
|
MT
|
LT
|
HEIGHT
|
AUGER
|
| 1815/40 | 140 | 154 | 29' 7" | 53' |
| 1815/45 | 144 | 158 | 30' 11" | 63' |
| 1815/55 | 153 | 168 | 34' 5" | 63' |
| 1820/40 | 177 | 194 | 34' 7" | 63' |
| 1820/45 | 180 | 198 | 35' 11" | 73' |
| 1820/55 | 190 | 208 | 39' 5" | 73' |
| 1825/40 | 213 | 234 | 39' 7" | 73' |
| 1825/45 | 217 | 238 | 40' 11" | 73' |
| 1825/55 | 226 | 248 | 44' 5" | 83' |
| 1830/40 | 249 | 274 | 44' 7" | 83' |
| 1830/45 | 253 | 278 | 45' 11" | 83' |
| 1830/55 | 262 | 289 | 49' 5" | 83' |
MT = metric tonne
LT = long ton

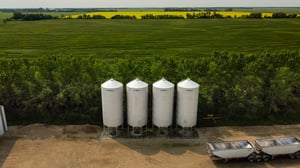

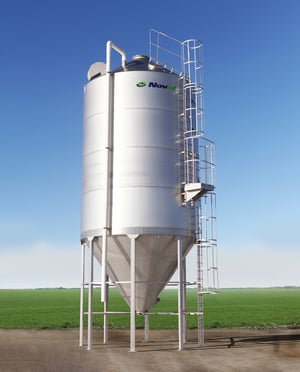

Hopper bottom bin features.
Standard with every bin:

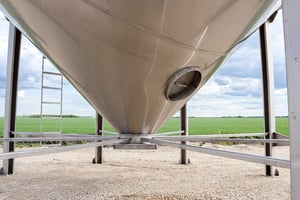

- Premium 18" stainless rotatable steel rack & pinion slide gate w/ stainless steel crank handle
- 24" clearance under slide gate

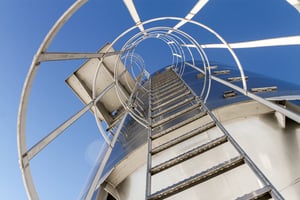

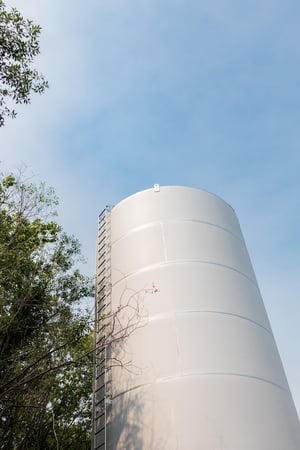

- Sidewall & roof ladder w/retractable safety section

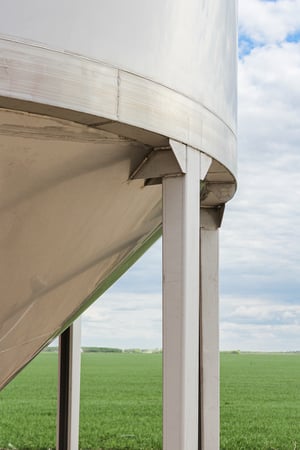

- Stainless steel structural tube legs
- 30° roof
- 21"x17" stainless steel hopper manway
- 6" stainless steel poke hole
- Three sight glasses
Download the hopper bin brochure.
Hopper bottom bin options.
Options for every bin:
- Stainless steel ladder/cage w/ handrail
- 6" or 8" downcomer
- 18" or 24" roof inspection lid
- 24"x20" stainless steel hopper manway
- Skid
- 45° & 55° hopper upgrades
Reasons why stainless is your best ROI.

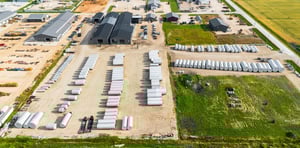

100% stainless facility.
Stainless Steel is all we do.
No chance for contamination here.
Fully customizable.
Configure your bin to fit.
30+ years.
The age of stainless storage still in use today.
304L or 316 stainless steel.
For excellent resistance to corrosion and exceptional longevity.

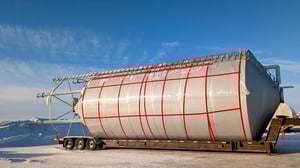

.jpeg?width=300&name=novid%2030%20stainless%20steel%20hopper%20bottom%20fertilizer%20storage%20bin%20on%20trailer%20(1%20of%201).jpeg)

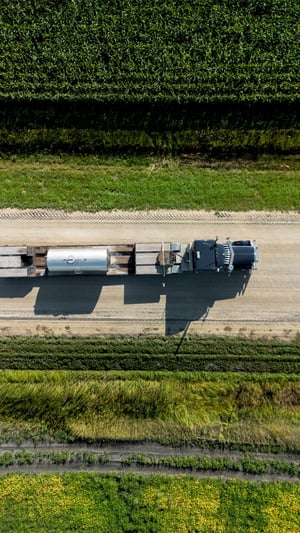

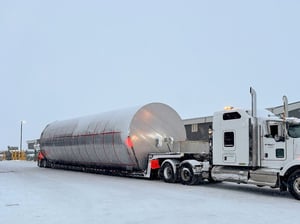

Seasonally protected.
Every bin wrapped for a spotless bin when the roads aren't.
CWB division 2 certified.
We understand the importance of using correct welding procedures and processes in order to deliver the highest quality product.
All Novid welders are trained and certified to weld stainless steel.

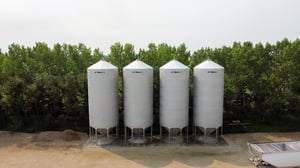

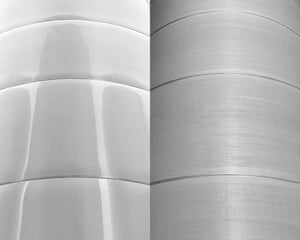

Shiny or matte finish.
Choose from a shiny 2B finish, or a matte HRAP finish.

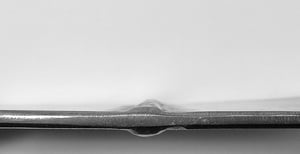

Superior strength.
Every joint is butt-seamed and fully penetrated.
Testimonials from Novid customers.
We understand that storage is more than just steel. It's about protecting your reputation, investments, and your peace of mind.
With 30+ year-old storage still in operation today, we know storage, and we have your back.
Absolutely, I would recommend the Novid stainless steel tanks.
Our annual inspections require that every year, we crack the hatches and we look inside. But what we've noticed, is that there is no maintenance. We've saved money every year on Vac Trucks because we don't have to go in there and clean out any leftover product.
Absolutely I would recommend the Novid stainless steel tanks. A very high quality product, they employ good people, their logistics is exceptional, their engineering is exceptional, and they stand behind their product.

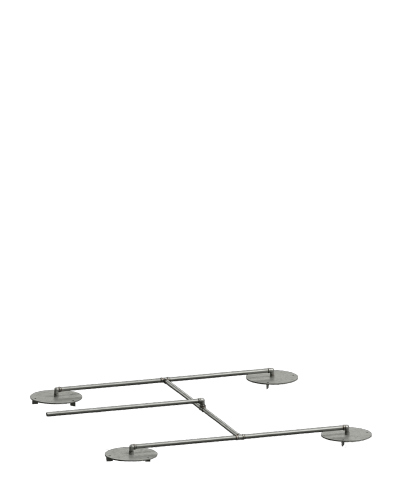

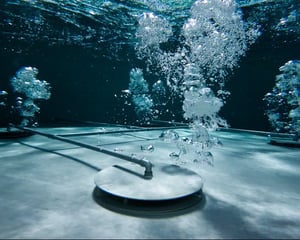

Novid’s aeration system has been a game changer for our retail.
Novid’s aeration system has been a game changer for our retail since updating our tanks when the DAS was launched.
Not only have we cut down on mixing time and increased safety for our staff, we have used the innovative setup as an easy way to inject nitrogen stabilizers while mixing at the same time.
.jpeg?width=300&name=novid%20stainless%20steel%20cone%20bottom%20chemical%20tanks%20(1%20of%201).jpeg)

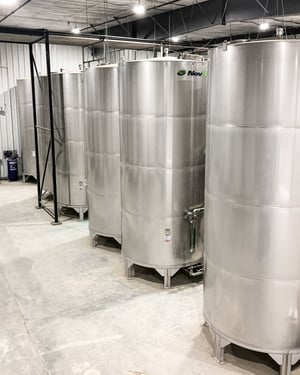

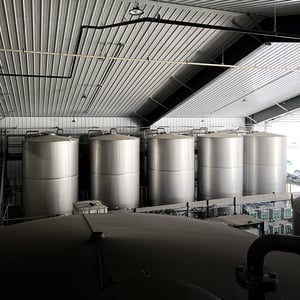

Forget about what you think you know about SS tanks.
Other manufacturers have to compensate for poor manufacturing expertise by using heavier gauges.
Novid designs each tank for optimal use of steel thickness while ensuring quality, longevity and affordability.
We believe in Novid’s commitment to safe, secure, maintenance free storage.
Our company has purchased more than 40 tanks from Novid over the past few years. Novid has always provided us with superior quality tanks, on time delivery, and great service.

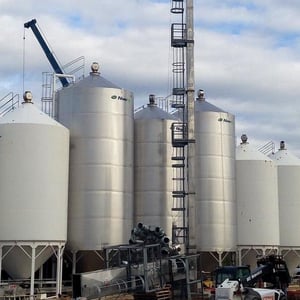

We were excited to receive the first three model 1620SW Hopper Bins at our Watrous, SK site this past summer. We were pleased to see that the same quality that goes into every Novid liquid tank is also apparent in the new Hopper Bins.
We believe in Novid’s commitment to safe, secure, maintenance free storage. I would highly recommend them to anyone interested in dry or liquid storage!
...ended up saving me over $40,000 in one year!

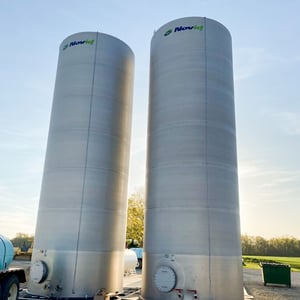

I recently purchased a Novid SS liquid storage tank and I decided to buy from Novid because of their great reputation for building high quality products designed to safely store fertilizer during our coldest winters. That gave me the confidence I needed to fill the tank in fall and not worry throughout the winter months.
It’s important to me to have storage on my yard so that I don’t have to rely on logistics in the spring rush. After installing the tank on my farm, I was able to take advantage of some seasonal pricing which ended up saving me over $40,000 in one year!
They look the same as they did when new.
We have been storing fertilizer in stainless steel for over 25 years which has drastically reduced our maintenance costs and has kept our facility looking good. In fact our stainless steel tanks are worth more today than what we originally paid for them, and they look the same as they did when new.
Reduced maintenance costs, long-term cost savings and quality workmanship keeps my yard and my budget looking good!
I would definitely recommend Novid for all of your stainless steel storage.
High quality tanks, on time delivery, and great after sale service.

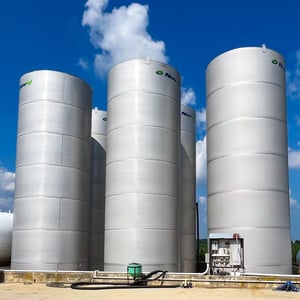

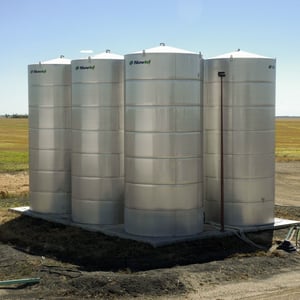

Harvest Land purchased 4 X 30,000 US gallon flat bottom tanks from Novid in 2014 along with 10 chemical tanks. We’re proud to have the 30,000 gallon tanks displayed in the front of our Springfield, Minnesota location.
Novid’s commitment to providing high quality tanks, on time delivery, and great after sale service is second to none.
I would definitely recommend Novid to anyone who is looking for long term fertilizer storage.
They’ve been awesome to deal with from start to finish.

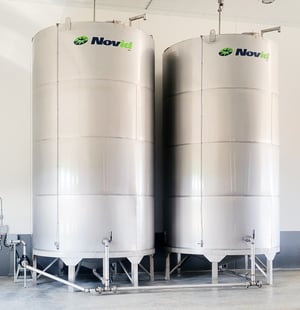

We purchased two stainless steel cone bottom liquid storage tanks from Novid, and we couldn’t be happier. The workmanship on these tanks is top-notch—it’s clear that quality is a priority.
We compared quotes from three other companies, and Novid came back very competitive. The entire experience was excellent.
We use the tanks to store canola oil pressed from the canola we grow, and they’ve performed exactly as we’d hoped—no issues at all.
As we expand our business, we fully intend to reach out to Novid again. They’ve been awesome to deal with from start to finish.
Looking for custom?
We specialize in custom storage for dry fertilizer.
Reach out and let's build something that works for your needs.
